One shot, one link! URAnet aqua NAI detector

Posted on 23 February 202420 March 2024 By André Gurtner No Comments on One shot, one link! URAnet aqua NAI detector

The Environmental Radioactivity Group (URA) runs a network of automatic probes (URAnet aqua) that continuously measure concentrations of gamma emitters in the Aare and Rhine rivers, downstream of nuclear power plants. Discover the installation of a new probe in the infographic below.

URAnet Aqua anglais
The URAnet aqua network Sensor installation plan Maintenance of aquatic probes Quality control, network testing Results, network status

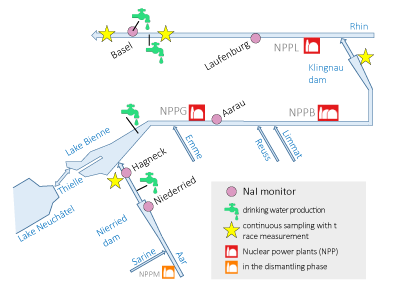

The URAnet aqua network

URAnet aqua: automatic measurement of radioactivity in rivers:
The continuous monitoring network for the Aare and Rhine rivers downstream of nuclear power stations

Following the accident at the Fukushima Daiichi nuclear power plant in 2011, large quantities of radioactive substances were discharged into the sea. Continuous monitoring of the radioactivity in Swiss rivers, not conducted before, became an important issue. Since 2015, this gap has been filled, and 5 automatic probes operated by the Federal Office of Public Health continuously measure gamma emitter concentrations in the Aare and Rhine rivers downstream of nuclear power plants. The Hagneck probe is currently out of service. The Niederried probe – otherwise redundant – is serving as its temporary replacement. These probes, equipped with a Na-I detector, provide short-term measurement results every ten minutes, as well as results integrated over a one-hour period. The 24-hour mean values are published on the Radenviro platform.

Sensor installation plan

Scheme of installation of an aquatic probe on a pillar fixed in the river bed (A); A mounting fixed to the river bank (B); Lower fixation of the probe (C). The blue connecting cable and the supporting steel rope are led into the water via the mounting. The steel rope is used to position and reinforce the probe.
(image A: D. Wyder, Metas; image C: taf-taucharbeiten ag).

Video of the URAnet aqua probe site in Laufenburg


https://www.radenviro.ch/wp-content/uploads/2023/10/Sonde-Uranet-Aqua-Laufenburg-vue-generale.mp4

Maintenance of aquatic probes

The aquatic probes in the URAnet aqua network require various types of maintenance, sometimes requiring replacement after a certain period of service.

https://www.radenviro.ch/wp-content/uploads/2024/02/changement_sonde_en-1.mp4

Quality control, network testing

The calibration is examined with a cesium-137 source placed around the NaI detector. After checking the probe's connection to the network, the presence of the cesium-137 peak in the spectrum and its position are verified.

https://www.radenviro.ch/wp-content/uploads/2024/02/source_reseau_en_last.mp4

Results, network status

The radenviro.ch website shows daily averages for all stations (01:00h - 01:00h).

The status indicates the state of the probe, and a click on "data" displays the station's measurement results.


Station

Start-up

Status

Remarks

Data

Aarau

June 2014

available

data

Basel

June 2013

available

data

Laufenburg

January 2015

available

data

Niederried

June 2014

available

Maintenance 29.01.2024 - 06.02.2024

data

Hagneck

June 2015

faulty

no data since 29.1.23.; no daily mean since 25.1.23; redundant station (Aare upstream of Lake Biel): Niederried

data
